Withings Sleep Analyzer.

Overnight Health Intelligence Without Wearables

Sleep occupies roughly one-third of every patient's day, yet it remains one of the least monitored dimensions of health in traditional remote patient monitoring programs. The Withings Sleep Analyzer changes this by providing comprehensive overnight health data through a sensor that sits beneath the mattress, requiring zero interaction from the patient. There are no wearables to charge, no buttons to press, and no devices to remember. The patient simply goes to sleep, and the data arrives on the CCNHealth dashboard by morning.

Sleep quality has emerged as a clinically significant indicator for a wide range of conditions, from cardiovascular disease and cognitive decline to depression and chronic pain. Research indicates that poor sleep may increase hypertension risk, accelerate cognitive deterioration, and exacerbate behavioral health conditions. By bringing sleep data into the clinical monitoring workflow, CCNHealth enables care teams to identify sleep-related health risks and intervene with a level of specificity that was previously limited to sleep laboratory settings.

How the Withings Sleep Analyzer Works with CCNHealth

Under-Mattress Sensor Technology

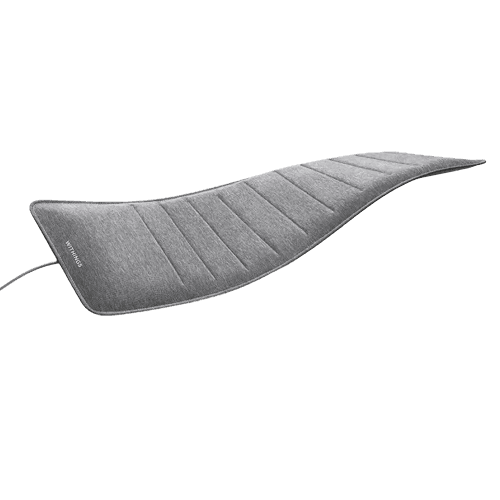

The Withings Sleep Analyzer is a thin, flexible sensor pad that is placed under the mattress, directly beneath the area where the patient's torso rests during sleep. The sensor detects the micro-movements and pressure changes associated with breathing, heartbeat, and body movement through the mattress material. No skin contact is required, and the sensor is imperceptible to the sleeper.

The device connects to the local WiFi network and transmits processed sleep data to the Withings cloud, which integrates with CCNHealth for clinical review. This architecture provides:

• Fully passive monitoring — The patient does not need to activate or deactivate the sensor
• Automatic sleep detection — The sensor recognizes when the patient gets into bed and begins recording
• Wake detection — Recording stops when the patient leaves the bed
• Continuous operation — The AC power adapter ensures the sensor operates every night without battery management

Sleep Stage Analysis

The Sleep Analyzer classifies each night into discrete sleep stages:

• Light sleep — The transitional stage between wakefulness and deeper sleep, typically comprising 50-60% of total sleep time
• Deep sleep — The restorative stage associated with tissue repair, immune function, and memory consolidation. Research suggests that reduced deep sleep may be associated with cardiovascular risk and cognitive decline in older adults
• REM sleep — Rapid eye movement sleep, associated with dreaming, emotional processing, and memory formation. REM suppression is linked to depression and cognitive impairment

By tracking the proportion and timing of each stage, the Sleep Analyzer provides a sleep architecture profile that goes far beyond simple duration measurement.

Breathing Disturbance Detection

One of the most clinically valuable capabilities of the Sleep Analyzer is its ability to detect breathing disturbances during sleep. The sensor identifies pauses and irregularities in the breathing pattern and calculates a breathing disturbance index that correlates with the apnea-hypopnea index (AHI) used in formal polysomnography:

• Normal — Fewer than 5 disturbances per hour
• Mild — 5 to 14 disturbances per hour, suggesting possible mild sleep apnea
• Moderate — 15 to 29 disturbances per hour, indicating moderate sleep-disordered breathing
• Severe — 30 or more disturbances per hour, warranting urgent evaluation

While the Withings Sleep Analyzer is not a diagnostic medical device and does not replace polysomnography for formal sleep apnea diagnosis, its breathing disturbance data may help clinicians identify patients who should be referred for comprehensive sleep evaluation.

Nocturnal Heart Rate Monitoring

The sensor tracks heart rate throughout the night, providing:

• Average nocturnal heart rate — A clinically meaningful metric that reflects cardiovascular health. Studies suggest that elevated nocturnal heart rate may be associated with increased cardiovascular mortality risk
• Heart rate variability patterns — Overnight HRV data may provide insights into autonomic nervous system function
• Heart rate trends — Night-over-night trending can reveal gradual changes in cardiovascular status

Clinical Data on CCNHealth

Each morning, the previous night's sleep data appears on the CCNHealth clinical dashboard with the following metrics:

• Total sleep duration — Time from sleep onset to final wake
• Sleep efficiency — Percentage of time in bed actually spent sleeping (target: above 85%)
• Sleep stage breakdown — Time and percentage in light, deep, and REM sleep
• Breathing disturbance index — Events per hour with severity classification
• Snoring duration — Total minutes of detected snoring
• Nocturnal heart rate — Average and range throughout the night
• Bed entry and exit times — Useful for behavioral health and circadian rhythm assessment

Alert rules can be configured for concerning patterns:

• Low sleep efficiency — Below 75% over multiple consecutive nights
• Elevated breathing disturbances — AHI-equivalent above configurable thresholds
• Abnormal nocturnal heart rate — Resting HR outside expected range
• Significant duration changes — Sudden decreases in total sleep time

Clinical Applications

Sleep Apnea Screening and Monitoring

Obstructive sleep apnea affects an estimated 30 million Americans, but the majority remain undiagnosed. The Withings Sleep Analyzer provides longitudinal breathing disturbance data that may help identify patients with previously unrecognized sleep-disordered breathing. For patients already diagnosed with sleep apnea and using CPAP therapy, the Sleep Analyzer can serve as an independent measure of treatment effectiveness, tracking whether breathing disturbances have decreased with therapy.

Cardiovascular Risk Assessment

Sleep quality is increasingly recognized as an independent cardiovascular risk factor. Research indicates that short sleep duration, poor sleep efficiency, and elevated nocturnal heart rate may be associated with increased risk of hypertension, heart failure, and atrial fibrillation. The Sleep Analyzer provides the overnight data that enables clinicians to incorporate sleep health into cardiovascular risk stratification for their RPM patients.

Cognitive Health Monitoring

For geriatric populations, changes in sleep architecture may precede observable cognitive decline. Studies suggest that reduced deep sleep and increased nighttime awakenings may correlate with early neurodegenerative changes. The Sleep Analyzer enables longitudinal tracking of sleep patterns in older adults, potentially providing early indicators that prompt cognitive evaluation and intervention.

Behavioral Health Integration

Sleep disturbance is a core symptom of major depressive disorder, generalized anxiety disorder, and other behavioral health conditions. For patients enrolled in BHI programs, the Withings Sleep Analyzer provides objective sleep data that supplements self-reported symptom scales like the PHQ-9 and GAD-7. Clinicians can correlate medication changes and therapeutic interventions with objective sleep quality metrics, providing a more complete picture of treatment response.

Insomnia Assessment

For patients with chronic insomnia, the Sleep Analyzer provides the kind of longitudinal, objective data that is difficult to obtain through patient self-report alone. Sleep onset latency, total sleep time, wake-after-sleep-onset, and sleep efficiency are all captured automatically, supporting evidence-based insomnia treatment approaches including cognitive behavioral therapy for insomnia (CBT-I) and medication management.

Integration and Billing

RPM and BHI Service Support

The Withings Sleep Analyzer supports both RPM and BHI service lines, depending on the clinical context:

• RPM — Sleep data collected nightly contributes to the 16-day transmission requirement for RPM billing. Each night of recorded sleep data counts as a transmission day.
• BHI — Sleep quality metrics support behavioral health documentation, particularly for depression and anxiety management programs under CPT codes 99484, 99492, and 99493.

Complementary Monitoring

Sleep data from the Withings analyzer is most powerful when combined with daytime vital sign data from other CCNHealth-connected devices. A patient with heart failure, for example, benefits from integrating overnight heart rate and breathing disturbance data with daytime blood pressure, weight, and SpO2 readings for a comprehensive 24-hour clinical picture.

Deployment

Installation

Setting up the Withings Sleep Analyzer requires minimal effort:

1. Place the sensor — Position the pad under the mattress, aligned with the patient's torso
2. Connect power — Plug the AC adapter into a nearby outlet
3. Connect to WiFi — One-time configuration via the Withings app
4. Verify placement — Confirm the sensor detects bed presence correctly
5. Monitoring begins — Data flows automatically each morning to CCNHealth

The entire installation process takes approximately 10 minutes.

Ideal Deployment Settings

Setting	Use Case
Home RPM	Patients with sleep apnea, insomnia, or cardiovascular conditions
Assisted living	Residents with multiple chronic conditions and sleep quality concerns
Memory care	Patients with dementia where nighttime monitoring is critical
Skilled nursing	Post-acute patients during recovery when sleep quality affects healing
BHI programs	Patients with depression or anxiety where sleep is a treatment target

Patient Acceptance

The Withings Sleep Analyzer achieves high patient acceptance because it requires no behavioral change. The patient does not wear anything, activate anything, or interact with the device in any way. This is particularly valuable for elderly patients, patients with cognitive impairment, and patients who have previously been non-adherent with wearable-based monitoring approaches.

Important Note on Regulatory Status

The Withings Sleep Analyzer is a consumer wellness device and is not FDA-cleared as a medical device. The breathing disturbance data it provides is intended for informational and wellness purposes and does not constitute a medical diagnosis. Patients with suspected sleep apnea should be referred for formal polysomnography for definitive diagnosis. Clinical decisions should incorporate Sleep Analyzer data as one element of the overall clinical picture alongside other validated assessments.

Getting Started

Adding the Withings Sleep Analyzer to your CCNHealth monitoring program is straightforward:

1. Patient identification — Identify patients who would benefit from sleep monitoring, including those with cardiovascular disease, behavioral health conditions, cognitive concerns, or suspected sleep-disordered breathing
2. Device provisioning — CCNHealth ships the Sleep Analyzer with installation instructions to patients or facilities
3. Installation — Place under the mattress and connect to WiFi during a setup visit or with remote guidance
4. Monitoring activation — First night of data triggers dashboard enrollment
5. Clinical review — Care teams review sleep quality trends, breathing disturbance data, and nocturnal heart rate patterns

Contact CCNHealth to integrate overnight sleep monitoring into your remote patient monitoring or behavioral health program.

Device specifications are sourced from manufacturer published data and are subject to change. Always verify current specifications with the manufacturer before clinical deployment.
